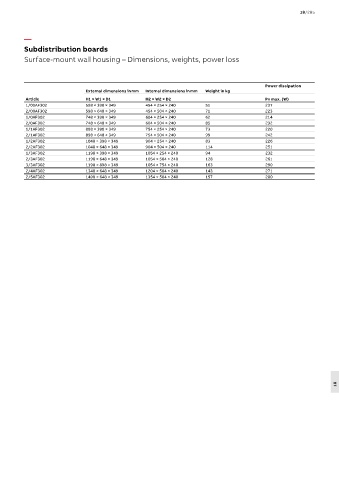

Subdistribution boards
Surface-mount wall housing – Dimensions, weights, power loss
Power dissipation
External dimensions in mm Internal dimensions in mm Weight in kg
Article H1 × W1 × D1 H2 × W2 × D2 Pv max. (W)
1/00AF302 598 × 398 × 349 454 × 254 × 240 51 237
2/00AF302 598 × 648 × 349 454 × 504 × 240 71 223
1/0AF302 748 × 398 × 349 604 × 254 × 240 62 214
2/0AF302 748 × 648 × 349 604 × 504 × 240 85 232
1/1AF302 898 × 398 × 349 754 × 254 × 240 73 220
2/1AF302 898 × 648 × 349 754 × 504 × 240 99 242
1/2AF302 1048 × 398 × 349 904 × 254 × 240 83 226
2/2AF302 1048 × 648 × 349 904 × 504 × 240 114 251
1/3AF302 1198 × 398 × 349 1054 × 254 × 240 94 232
2/3AF302 1198 × 648 × 349 1054 × 504 × 240 128 261
3/3AF302 1198 × 898 × 349 1054 × 754 × 240 163 290
2/4AF302 1348 × 648 × 349 1204 × 504 × 240 143 271
2/5AF302 1498 × 648 × 349 1354 × 504 × 240 157 280
