2/20 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

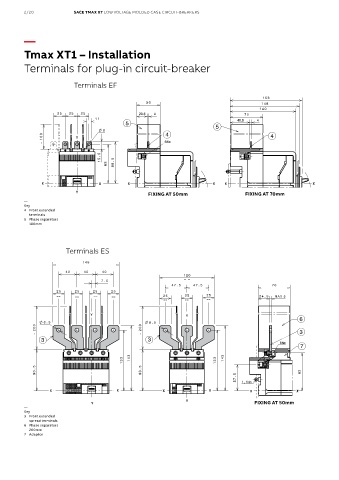

Tmax XT1 – Installation

Terminals for plug-in circuit-breaker

Terminals EF

20.5
40.5

FIXING AT 50mm FIXING AT 70mm
—
Key
4 Front extended
terminals
5 Phase separators
100mm

Terminals ES

FIXING AT 50mm
—
Key
3 Front extended
spread terminals
6 Phase separators
200mm
7 Adaptor
