OVER ALL DIMENSIONS 2/19
02

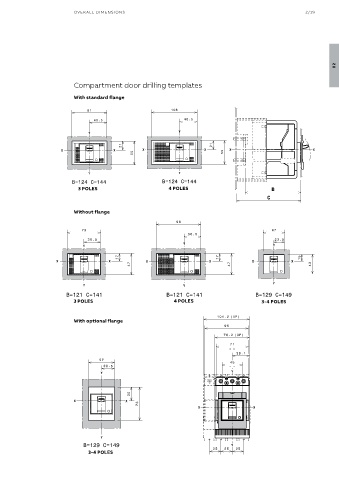

Compartment door drilling templates
With standard flange
3 POLES 4 POLES
Without flange
3 POLES 4 POLES 3-4 POLES
With optional flange
3-4 POLES
