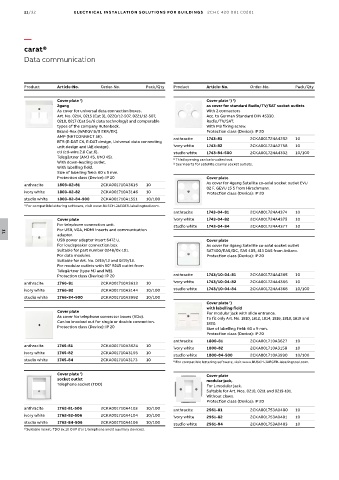

11/32 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
carat®
Data communication

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Cover plate ) 1 Cover plate ) )
1
2
2gang as cover for standard Radio/TV/SAT socket outlets
As cover for universal data connection boxes. With 2 connectors
Art. No. 0214, 0215 (Cat 3), 0220/12-507, 0221/12-507, Acc. to German Standard DIN 45330.
0218, 0217 (Cat 5e/6 data technology) and comparable Radio/TV/SAT.
types of the company Rutenbeck. With M3 fixing screw.
Brand-Rex (WAEGV 8/8 EKR/EK). Protection class (Device): IP 20
AMP (NETCONNECT 5E). anthracite 1743-81 2CKA001724A4252 10
BTR (E-DAT C6, E-DAT design, Universal data connecting
unit design and IAE design). ivory white 1743-82 2CKA001724A2758 10
cti (cti-wire 2.8 Cat.6). studio white 1743-84-500 2CKA001724A4332 10/100
Telegärtner (AMJ 45, UMJ 45). 1) Third opening can be knocked out.
With down-leading outlet. 2) See inserts for satellite coaxial socket outlets.
With labelling field.
Size of labelling field: 60 x 9 mm.
Protection class (Device): IP 20 Cover plate
anthracite 1803-02-81 2CKA001710A3615 10 As cover for 4gang Satellite co-axial socket outlet EVU
02 F, GEVU 15 S from Hirschmann.
ivory white 1803-02-82 2CKA001710A3146 10 Protection class (Device): IP 20
studio white 1803-02-84-500 2CKA001710A1551 10/100
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
anthracite 1743-04-81 2CKA001724A4374 10
Cover plate ivory white 1743-04-82 2CKA001724A4375 10
For telephone connection unit. studio white 1743-04-84 2CKA001724A4377 10
For USB, VGA, HDMI inserts and communication
adapter.
11
USB power adapter insert 6472 U. Cover plate
For loudspeaker connection box. As cover for 4gang Satellite co-axial socket outlet
Suitable for part number 0248/0x-101. SAT400/EAS/DC, EAS 405, 413 DAS from Ankaro.
For data modules. Protection class (Device): IP 20
Suitable for Art. No. 0219/12 and 0219/13.
For modular outlets with 90° RJ45 outlet from
Telegärtner (type MJ and WE).
Protection class (Device): IP 20 anthracite 1743/10-04-81 2CKA001724A4365 10
anthracite 1766-81 2CKA001710A3613 10 ivory white 1743/10-04-82 2CKA001724A4366 10
ivory white 1766-82 2CKA001710A3144 10/100 studio white 1743/10-04-84 2CKA001724A4368 10/100
studio white 1766-84-500 2CKA001710A3992 10/100
1
Cover plate )
with labelling field
Cover plate For modular jack with slide entrance.
As cover for telephone connector boxes (VDo). To fit only Art. No. 1810, 1812, 1814, 1816, 1818, 1819 and
Can be knocked out for single or double connection. 1820.
Protection class (Device): IP 20
Size of labelling field: 60 x 9 mm.
Protection class (Device): IP 20
anthracite 1800-81 2CKA001710A3627 10
anthracite 1745-81 2CKA001710A3624 10
ivory white 1800-82 2CKA001710A3158 10
ivory white 1745-82 2CKA001710A3155 10
studio white 1800-84-500 2CKA001710A3990 10/100
studio white 1745-84 2CKA001710A3173 10 1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
Cover plate ) 1 Cover plate
socket outlet modular jack,
Telephone socket (TDO) For 1 modular jack.
Suitable for Art. Nos. 0210, 0211 and 0219-101.
Without claws.
Protection class (Device): IP 20
anthracite 1762-81-506 2CKA001710A4103 10/100 anthracite 2561-81 2CKA001753A0400 10
ivory white 1762-82-506 2CKA001710A4104 10/100 ivory white 2561-82 2CKA001753A0401 10
studio white 1762-84-506 2CKA001710A4106 10/100 studio white 2561-84 2CKA001753A0403 10
1) Suitable insert: TDO 3x 10 OUP (for 1 telephone and 2 auxiliary devices).
