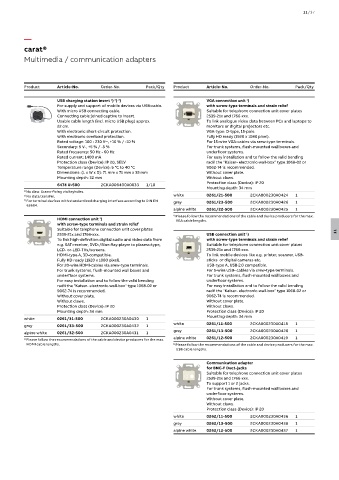

carat®
Multimedia / communication adapters

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
USB charging station insert ) ) ) VGA connection unit )
1
2
3
For supply and support of mobile devices via USB-cable. with screw-type terminals and strain relief
With micro USB connecting cable. Suitable for telephone connection unit cover plates
Connecting cable joined captive to insert. 2539-21x and 1766-xxx.
Usable cable length (incl. micro USB plug) approx. To link analogue video data between PCs and laptops to
22 cm. monitors or digital projectors etc.
With electronic short-circuit protection. VGA-type: D-type, 15-pole.
With electronic overload protection. Fully HD ready (1920 x 1080 pixel).
Rated voltage: 100 - 230 V~, +10 % / -10 % For 15-wire VGA-cables via srew-type terminals.
Secondary: 5 V-, +5 % / -5 % For trunk systems, flush-mounted wall boxes and
Rated frequency: 50 Hz - 60 Hz underfloor systems.
Rated current: 1400 mA For easy installation and to follow the valid bending
Protection class (Device): IP 20, SELV radii the "Kaiser- electronic-wall-box" type 1068-02 or
Temperature range (Device): 5 °C to 40 °C 9062-74 is recommended.
Dimensions: (L x W x D): 71 mm x 71 mm x 35 mm Without cover plate.
Mounting depth: 32 mm Without claws.
Protection class (Device): IP 20
6474 U-500 2CKA006400A0033 1/10
Mounting depth: 34 mm
1) No claw. Screw-fixing via keyholes.
2) No data transfer. white 0261/21-500 2CKA000230A0424 1
3) For terminal devices with standardized charging interface according to DIN EN grey 0261/23-500 2CKA000230A0426 1
62684.
alpine white 0261/22-500 2CKA000230A0425 1
1) Please follow the recommendations of the cable and device producers for the max.
1
HDMI connection unit ) VGA cable lengths.
with screw-type terminals and strain relief
Suitable for telephone connection unit cover plates
2539-21x and 1766-xxx. USB connection unit ) 1 11
To link high-definition digital audio and video data from with screw-type terminals and strain relief
e.g. SAT-receiver, DVD-/Blue-Ray-player to plasma-type, Suitable for telephone connection unit cover plates
LCD- or-LED-TVs/screens. 2539-21x and 1766-xxx.
HDMI-type A, 3D-compatible. To link mobile devices like e.g. printer, scanner, USB-
Fully HD ready (1920 x 1080 pixel). sticks or digital cameras etc.
For 20-wire HDMI-cables via srew-type terminals. USB-type A, USB 2.0 compatible.
For trunk systems, flush-mounted wall boxes and For 5-wire USB- cables via srew-type terminals.
underfloor systems. For trunk systems, flush-mounted wall boxes and
For easy installation and to follow the valid bending underfloor systems.
radii the "Kaiser- electronic-wall-box" type 1068-02 or For easy installation and to follow the valid bending
9062-74 is recommended. radii the "Kaiser- electronic-wall-box" type 1068-02 or
Without cover plate. 9062-74 is recommended.
Without claws. Without cover plate.
Protection class (Device): IP 20 Without claws.
Mounting depth: 34 mm Protection class (Device): IP 20
white 0261/31-500 2CKA000230A0430 1 Mounting depth: 34 mm
white 0261/11-500 2CKA000230A0418 1
grey 0261/33-500 2CKA000230A0432 1
alpine white 0261/32-500 2CKA000230A0431 1 grey 0261/13-500 2CKA000230A0420 1
alpine white 0261/12-500 2CKA000230A0419 1
1) Please follow the recommendations of the cable and device producers for the max.
HDMI cable lengths. 1) Please follow the recommendations of the cable and device producers for the max.
USB cable lengths.
Communication adapter
for BNC-F Duct-jacks
Suitable for telephone connection unit cover plates
2539-21x and 1766-xxx.
To support 1 or 2 jacks.
For trunk systems, flush-mounted wall boxes and
underfloor systems.
Without cover plate.
Without claws.
Protection class (Device): IP 20
white 0262/11-500 2CKA000230A0436 1
grey 0262/13-500 2CKA000230A0438 1
alpine white 0262/12-500 2CKA000230A0437 1
