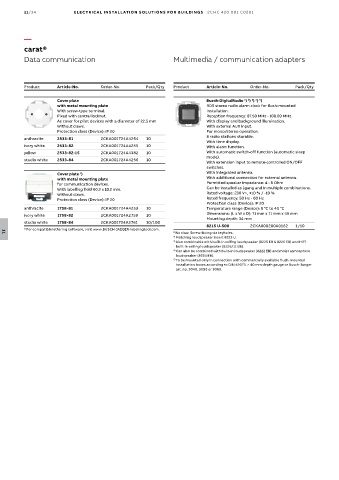

11/34 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
carat®
Data communication Multimedia / communication adapters

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

3
4
2
Cover plate Busch-DigitalRadio ) ) ) ) )
1
5
with metal mounting plate RDS stereo radio alarm clock for flush-mounted
With screw-type terminal. installation.
Fixed with central locknut. Reception frequency: 87.50 MHz - 108.00 MHz.
As cover for pilot devices with a diameter of 22.5 mm With display and background illumination.
Without claws. With external AUX input.
Protection class (Device): IP 20 For mono/stereo operation.
8 radio stations storable.
anthracite 2533-81 2CKA001724A4254 10
With time display.
ivory white 2533-82 2CKA001724A4255 10 With alarm function.
yellow 2533-82-15 2CKA001724A4382 10 With automatic switch-off function (automatic sleep
mode).
studio white 2533-84 2CKA001724A4256 10
With extension input to remote-controlled ON/OFF
switches.
Cover plate ) 1 With integrated antenna.
with metal mounting plate With additional connection for external antenna.
for communication devices. Permitted speaker impedance: 4 - 8 Ohm
With labelling field 60.2 x 10.2 mm. Can be installed as 1gang and in multiple combinations.
Without claws. Rated voltage: 230 V~, +10 % / -10 %
Protection class (Device): IP 20 Rated frequency: 50 Hz - 60 Hz
Protection class (Device): IP 20
anthracite 1758-81 2CKA001724A4253 10 Temperature range (Device): 5 °C to 40 °C
ivory white 1758-82 2CKA001724A2759 10 Dimensions: (L x W x D): 71 mm x 71 mm x 49 mm
Mounting depth: 34 mm
studio white 1758-84 2CKA001724A2761 10/100
8215 U-500 2CKA008200A0182 1/10
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
1) No claw. Screw-fixing via keyholes.
11
2) Matching loudspeaker insert 8223 U.
3) Also combinable with built-in ceiling loudspeaker (8225 EB & 8226 EB) and HiFi
built-in ceiling loudspeaker (8226/11 EB).
4) Can also be combined with built-in loudspeaker (8222 EB) and moist atmosphere
loudspeaker (8224 EB).
5) To be mounted only in connection with commercially available flush-mounted
installation boxes according to DIN 49073 > 40 mm depth gauge or Busch-Jaeger
art. no. 3040, 3050 or 3060.
