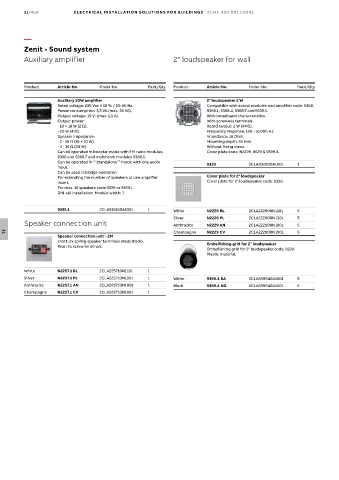

Page 1556 - Din prodcuts 2020

11/450 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Zenit - Sound system
Auxiliary amplifier 2" loudspeaker for wall

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Auxiliary 20W amplifier 2" loudspeaker 2 W
Rated voltage: 230 Vac ± 10 % / 50-60 Hz. Compatible with sound modules and amplifier code: 9368,
Power consumption: 3,5 VA (max. 36 VA). 9368.1, 9368.4, 9368.7 and 9335.1.
Output voltage: 15 V- (max. 1,5 A). With broadband characteristics.
Output power: With screwless terminals.
- 10 + 10 W (2 Ω). Rated output: 2 W (RMS).
- 20 W (4 Ω). Frequency response: 150 - 16.000 Hz.
Speaker impedance: Impedance: 16 Ohm.
- 2 - 16 Ω (10 + 10 W). Mounting depth: 34 mm.
- 4 - 16 Ω (20 W). Without fixing claws.
Can be operated in booster mode with FM radio modules Cover plate code: N2229, 8629 & 9399.4.
9368 and 9368.7 and multiroom modules 9368.1.
Can be operated in “”standalone”” mode with one audio 9329 2CLA932900A1001 1
input.
Can be used in bridge operation.
For extending the number of speakers at one amplifier Cover plate for 2" loudspeaker
insert. Cover plate for 2" loudspeaker code: 9329.
For max. 16 speakers code 9329 or 9329.1.
DIN-rail installation. Module width: 7.

9335.1 2CLA933510A1001 1 White N2229 BL 2CLA222900N1101 5
Silver N2229 PL 2CLA222900N1301 5
Speaker connection unit Anthracite N2229 AN 2CLA222900N1801 5
Champagne N2229 CV 2CLA222900N1901 5
Speaker connection unit - 2M
11
Front: 2x spring speaker terminals (Red/Black).
Rear: 2x screw terminals. Embellishing grid for 2" loudspeaker
Embellishing grid for 2" loudspeaker code: 9329.
Plastic material.

White N2257.1 BL 2CLA225710N1101 1
Silver N2257.1 PL 2CLA225710N1301 1 White 9399.4 BA 2CLA939940A1001 5
Anthracite N2257.1 AN 2CLA225710N1801 1 Black 9399.4 NG 2CLA939940A1501 5
Champagne N2257.1 CV 2CLA225710N1901 1
