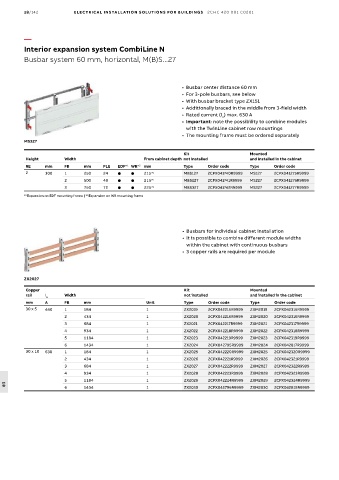

18/142 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
Busbar system 60 mm, horizontal, M(B)S...27

• Busbar center distance 60 mm
• For 3-pole busbars, see below
• With busbar bracket type ZX151
• Additionally braced in the middle from 3-field width
• Rated current (I ) max. 630 A
n
• Important: note the possibility to combine modules
with the TwinLine cabinet row mountings
• The mounting frame must be ordered separately
MS327

Kit Mounted
Height Width From cabinet depth not installed and installed in the cabinet
RE mm FB mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
2 300 1 250 24   215* 1 MBS127 2CPX041740R9999 MS127 2CPX041275R9999
2 500 48   215* 1 MBS227 2CPX041741R9999 MS227 2CPX041276R9999
3 750 72   225* 1 MBS327 2CPX041742R9999 MS327 2CPX041277R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• Busbars for individual cabinet installation
• It is possible to combine different module widths
within the cabinet with continuous busbars
• 3 copper rails are required per module

ZX2027
Copper Kit Mounted
rail I n Width not installed and installed in the cabinet
mm A FB mm Unit Type Order code Type Order code
30 x 5 440 1 184 1 ZX2019 2CPX042215R9999 ZXM2019 2CPX042315R9999
2 434 1 ZX2020 2CPX042216R9999 ZXM2020 2CPX042316R9999
3 684 1 ZX2021 2CPX042217R9999 ZXM2021 2CPX042317R9999
4 934 1 ZX2022 2CPX042218R9999 ZXM2022 2CPX042318R9999
5 1184 1 ZX2023 2CPX042219R9999 ZXM2023 2CPX042319R9999
6 1434 1 ZX2024 2CPX042795R9999 ZXM2024 2CPX042817R9999
30 x 10 630 1 184 1 ZX2025 2CPX042220R9999 ZXM2025 2CPX042320R9999
2 434 1 ZX2026 2CPX042221R9999 ZXM2026 2CPX042321R9999
3 684 1 ZX2027 2CPX042222R9999 ZXM2027 2CPX042322R9999
4 934 1 ZX2028 2CPX042223R9999 ZXM2028 2CPX042323R9999
5 1184 1 ZX2029 2CPX042224R9999 ZXM2029 2CPX042324R9999
6 1434 1 ZX2030 2CPX042796R9999 ZXM2030 2CPX042818R9999
18
