18/143

—

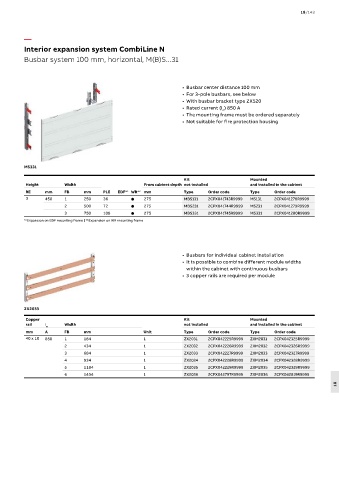

Interior expansion system CombiLine N
Busbar system 100 mm, horizontal, M(B)S...31

• Busbar center distance 100 mm
• For 3-pole busbars, see below
• With busbar bracket type ZX520
• Rated current (I ) 850 A
n
• The mounting frame must be ordered separately
• Not suitable for fire protection housing

MS331

Kit Mounted
Height Width From cabinet depth not installed and installed in the cabinet
RE mm FB mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
3 450 1 250 36  275 MBS131 2CPX041743R9999 MS131 2CPX041278R9999
2 500 72  275 MBS231 2CPX041744R9999 MS231 2CPX041279R9999
3 750 108  275 MBS331 2CPX041745R9999 MS331 2CPX041280R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• Busbars for individual cabinet installation
• It is possible to combine different module widths
within the cabinet with continuous busbars
• 3 copper rails are required per module

ZX2033

Copper Kit Mounted
rail I Width not installed and installed in the cabinet
n
mm A FB mm Unit Type Order code Type Order code
40 x 10 850 1 184 1 ZX2031 2CPX042225R9999 ZXM2031 2CPX042325R9999
2 434 1 ZX2032 2CPX042226R9999 ZXM2032 2CPX042326R9999
3 684 1 ZX2033 2CPX042227R9999 ZXM2033 2CPX042327R9999
4 934 1 ZX2034 2CPX042228R9999 ZXM2034 2CPX042328R9999
5 1184 1 ZX2035 2CPX042229R9999 ZXM2035 2CPX042329R9999
6 1434 1 ZX2036 2CPX042797R9999 ZXM2036 2CPX042819R9999
18
