18/145

—

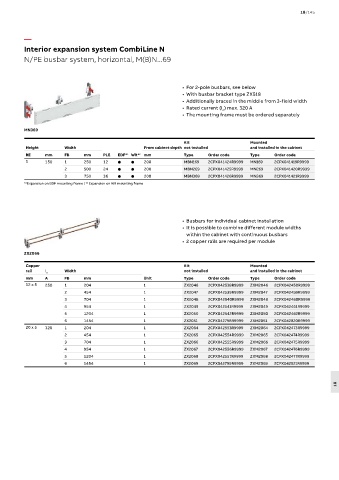

Interior expansion system CombiLine N
N/PE busbar system, horizontal, M(B)N...69

• For 2-pole busbars, see below
• With busbar bracket type ZX518
• Additionally braced in the middle from 3-field width
• Rated current (I ) max. 320 A
n
• The mounting frame must be ordered separately

MN369

Kit Mounted
Height Width From cabinet depth not installed and installed in the cabinet
RE mm FB mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
1 150 1 250 12   200 MBN169 2CPX041424R9999 MN169 2CPX041419R9999
2 500 24   200 MBN269 2CPX041425R9999 MN269 2CPX041420R9999
3 750 36   200 MBN369 2CPX041426R9999 MN369 2CPX041421R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• Busbars for individual cabinet installation
• It is possible to combine different module widths
within the cabinet with continuous busbars
• 2 copper rails are required per module

ZX2066

Copper Kit Mounted
rail I Width not installed and installed in the cabinet
n
mm A FB mm Unit Type Order code Type Order code
12 x 5 250 1 204 1 ZX2046 2CPX042538R9999 ZXM2046 2CPX042458R9999
2 454 1 ZX2047 2CPX042539R9999 ZXM2047 2CPX042459R9999
3 704 1 ZX2048 2CPX042540R9999 ZXM2048 2CPX042460R9999
4 954 1 ZX2049 2CPX042541R9999 ZXM2049 2CPX042461R9999
5 1204 1 ZX2050 2CPX042542R9999 ZXM2050 2CPX042462R9999
6 1454 1 ZX2051 2CPX042798R9999 ZXM2051 2CPX042820R9999
20 x 5 320 1 204 1 ZX2064 2CPX042553R9999 ZXM2064 2CPX042473R9999
2 454 1 ZX2065 2CPX042554R9999 ZXM2065 2CPX042474R9999
3 704 1 ZX2066 2CPX042555R9999 ZXM2066 2CPX042475R9999
4 954 1 ZX2067 2CPX042556R9999 ZXM2067 2CPX042476R9999
5 1204 1 ZX2068 2CPX042557R9999 ZXM2068 2CPX042477R9999
6 1454 1 ZX2069 2CPX042799R9999 ZXM2069 2CPX042821R9999

18
