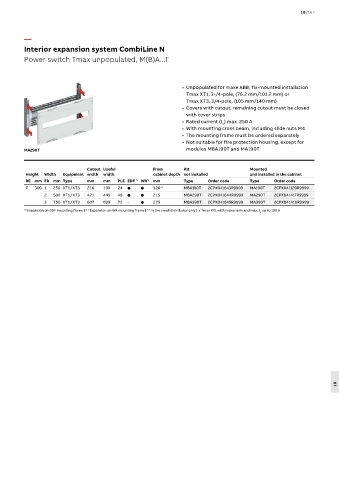

Interior expansion system CombiLine N
Power switch Tmax unpopulated, M(B)A...T

• Unpopulated for make ABB, fix-mounted installation
Tmax XT1, 3-/4-pole, (76.2 mm/101.2 mm) or
Tmax XT3, 3/4-pole, (105 mm/140 mm)
• Covers with cutout, remaining cutout must be closed
with cover strips
• Rated current (I ) max. 250 A
n
• With mounting cross beam, including slide nuts M4
• The mounting frame must be ordered separately
• Not suitable for fire protection housing, except for
MA290T modules MBA190T and MA190T

Cutout Useful From Kit Mounted
Height Width Equipment width width cabinet depth not installed and installed in the cabinet
RE mm FB mm Type mm mm PLE EDF *1 WR *2 mm Type Order code Type Order code
2 300 1 250 XT1/XT3 216 199 24   120* 3 MBA190T 2CPX041643R9999 MA190T 2CPX041120R9999
2 500 XT1/XT3 421 449 48   215 MBA290T 2CPX041644R9999 MA290T 2CPX041417R9999
3 750 XT1/XT3 687 699 72 -  275 MBA390T 2CPX041645R9999 MA390T 2CPX041418R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame | * 3 In the small distributor only 1 x Tmax XT1 with rocker arm and max. I n up to 100 A
