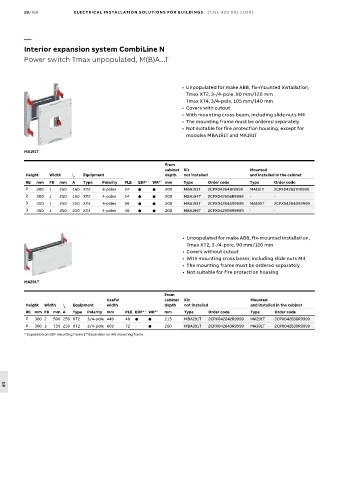

18/168 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
Power switch Tmax unpopulated, M(B)A...T

• Unpopulated for make ABB, fix-mounted installation,
Tmax XT2, 3-/4-pole, 90 mm/120 mm
Tmax XT4, 3/4-pole, 105 mm/140 mm
• Covers with cutout
• With mounting cross beam, including slide nuts M4
• The mounting frame must be ordered separately
• Not suitable for fire protection housing, except for
modules MBA191T and MA191T

MA191T

From
cabinet Kit Mounted
Height Width I n Equipment depth not installed and installed in the cabinet
RE mm FB mm A Type Polarity PLE EDF* 1 WR* 2 mm Type Order code Type Order code
2 300 1 250 160 XT2 3-poles 24   200 MBA191T 2CPX042841R9999 MA191T 2CPX042837R9999
2 300 1 250 160 XT2 4-poles 24   200 MBA194T 2CPX042906R9999 - -
3 450 1 250 250 XT4 3-poles 36   200 MBA193T 2CPX042844R9999 MA193T 2CPX042840R9999
3 450 1 250 250 XT4 4-poles 36   200 MBA196T 2CPX042908R9999 - -

• Unpopulated for make ABB, fix-mounted installation,
Tmax XT2, 3-/4-pole, 90 mm/120 mm
• Covers without cutout
• With mounting cross beam, including slide nuts M4
• The mounting frame must be ordered separately
• Not suitable for fire protection housing
MA291T

From
Useful cabinet Kit Mounted
Height Width I Equipment width depth not installed and installed in the cabinet
n
RE mm FB mm A Type Polarity mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
2 300 2 500 250 XT2 3/4-pole 449 48   215 MBA291T 2CPX042842R9999 MA291T 2CPX042838R9999
2 300 3 750 250 XT2 3/4-pole 669 72 -  260 MBA391T 2CPX042843R9999 MA391T 2CPX042839R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

18
