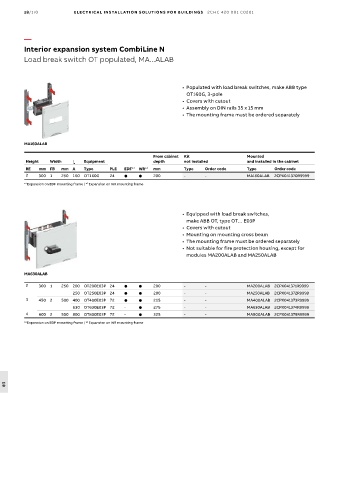

18/170 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
Load break switch OT populated, MA...ALAB

• Populated with load break switches, make ABB type
OT160G, 3-pole
• Covers with cutout
• Assembly on DIN rails 35 x 15 mm
• The mounting frame must be ordered separately

MA160ALAB

From cabinet Kit Mounted
Height Width I Equipment depth not installed and installed in the cabinet
n
RE mm FB mm A Type PLE EDF* 1 WR* 2 mm Type Order code Type Order code
2 300 1 250 160 OT160G 24   200 - - MA160ALAB 2CPX041370R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• Equipped with load break switches,
make ABB OT, type OT… E03P
• Covers with cutout
• Mounting on mounting cross beam
• The mounting frame must be ordered separately
• Not suitable for fire protection housing, except for
modules MA200ALAB and MA250ALAB

MA630ALAB
2 300 1 250 200 OT200E03P 24   200 - - MA200ALAB 2CPX041371R9999
250 OT250E03P 24   200 - - MA250ALAB 2CPX041372R9999
3 450 2 500 400 OT400E03P 72   215 - - MA400ALAB 2CPX041373R9999
630 OT630E03P 72 -  275 - - MA630ALAB 2CPX041374R9999
4 600 2 500 800 OT800E03P 72 -  325 - - MA800ALAB 2CPX041375R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame
