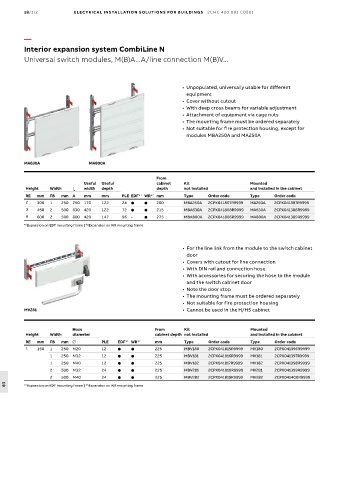

18/172 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
Universal switch modules, M(B)A...A/line connection M(B)V...

• Unpopulated, universally usable for different
equipment
• Cover without cutout
• With deep cross beams for variable adjustment
• Attachment of equipment via cage nuts
• The mounting frame must be ordered separately
• Not suitable for fire protection housing, except for
modules MBA250A and MA250A

MA630A MA800A

From
Useful Useful cabinet Kit Mounted
Height Width I n width depth depth not installed and installed in the cabinet
RE mm FB mm A mm mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
2 300 1 250 250 170 122 24   200 MBA250A 2CPX041807R9999 MA250A 2CPX041387R9999
3 450 2 500 630 420 122 72   215 MBA630A 2CPX041808R9999 MA630A 2CPX041388R9999
4 600 2 500 800 420 147 96 -  275 MBA800A 2CPX041806R9999 MA800A 2CPX041389R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• For the line link from the module to the switch cabinet
door
• Covers with cutout for line connection
• With DIN rail and connection hose
• With accessories for securing the hose to the module
and the switch cabinet door
• Note the door stop
• The mounting frame must be ordered separately
• Not suitable for fire protection housing
MV281 • Cannot be used in the H/HS cabinet

Hose From Kit Mounted
Height Width diameter cabinet depth not installed and installed in the cabinet
RE mm FB mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
1 150 1 250 M20 12   225 MBV180 2CPX041815R9999 MV180 2CPX041396R9999
1 250 M32 12   225 MBV181 2CPX041816R9999 MV181 2CPX041397R9999
1 250 M40 12   225 MBV182 2CPX041817R9999 MV182 2CPX041398R9999
2 500 M32 24   225 MBV281 2CPX041818R9999 MV281 2CPX041399R9999
2 500 M40 24   225 MBV282 2CPX041819R9999 MV282 2CPX041400R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame
18
