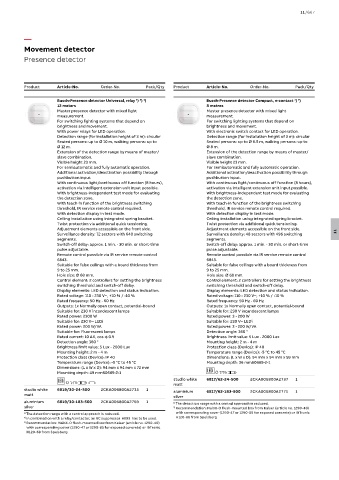

Page 1773 - Din prodcuts 2020

11/667

—
Movement detector
Presence detector

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

2
1
Busch-Presence detector Universal, relay ) ) ) Busch-Presence detector Compact, e-contact ) )
2
1
3
12 meters 8 metres
Master presence detector with mixed light Master presence detector with mixed light
measurement. measurement.
For switching lighting systems that depend on For switching lighting systems that depend on
brightness and movement. brightness and movement.
With power relays for LED operation. With electronic switch contact for LED operation.
Detection range (for installation height of 3 m): circular Detection range (for installation height of 3 m): circular
Seated persons: up to Ø 10 m, walking persons: up to Seated persons: up to Ø 6.5 m, walking persons: up to
Ø 12 m. Ø 8 m.
Extension of the detection range by means of master/ Extension of the detection range by means of master/
slave combination. slave combination.
Visible height 23 mm. Visible height 23 mm.
For semiautomatic and fully automatic operation. For semiautomatic and fully automatic operation.
Additional activation/deactivation possibility through Additional activation/deactivation possibility through
pushbutton input. pushbutton input.
With continuous light/continuous off function (8 hours), With continuous light/continuous off function (8 hours),
activation via intelligent extension unit input possible. activation via intelligent extension unit input possible.
With brightness-independent test mode for evaluating With brightness-independent test mode for evaluating
the detection zone. the detection zone.
With teach-in function of the brightness switching With teach-in function of the brightness switching
threshold, IR service remote control required. threshold, IR service remote control required.
With detection display in test mode. With detection display in test mode.
Ceiling installation using integrated spring bracket. Ceiling installation using integrated spring bracket.
Twist protection via additional quick tensioning. Twist protection via additional quick tensioning.
Adjustment elements accessible on the front side. Adjustment elements accessible on the front side.
Surveillance density: 72 sectors with 640 switching Surveillance density: 48 sectors with 496 switching 11
segments. segments.
Switch-off delay: approx. 1 min. - 30 min. or short-time Switch-off delay: approx. 1 min. - 30 min. or short-time
pulse adjustable. pulse adjustable.
Remote control possible via IR service remote control Remote control possible via IR service remote control
6843. 6843.
Suitable for false ceilings with a board thickness from Suitable for false ceilings with a board thickness from
9 to 25 mm. 9 to 25 mm.
Hole size: Ø 68 mm. Hole size: Ø 68 mm.
Control element: 2 controllers for setting the brightness Control element: 2 controllers for setting the brightness
switching threshold and switch-off delay. switching threshold and switch-off delay.
Display elements: LED detection and status indication. Display elements: LED detection and status indication.
Rated voltage: 110 - 230 V~, +10 % / -10 % Rated voltage: 110 - 230 V~, +10 % / -10 %
Rated frequency: 50 Hz - 60 Hz Rated frequency: 50 Hz - 60 Hz
Outputs: 1x Normally open contact, potential-bound Outputs: 1x Normally open contact, potential-bound
Suitable for: 230 V incandescent lamps Suitable for: 230 V incandescent lamps
Rated power: 2300 W Rated power: 3 - 200 W
Suitable for: 230 V~ LEDi Suitable for: 230 V~ LEDi
Rated power: 200 W/VA Rated power: 3 - 200 W/VA
Suitable for: Fluorescent lamps Detection angle: 360 °
Rated current: 10 AX, cos φ 0.9 Brightness limit value: 5 Lux - 2000 Lux
Detection angle: 360 ° Mounting height: 2 m - 4 m
Brightness limit value: 5 Lux - 2000 Lux Protection class (Device): IP 40
Mounting height: 2 m - 4 m Temperature range (Device): -5 °C to 45 °C
Protection class (Device): IP 40 Dimensions: (L x W x D): 94 mm x 94 mm x 59 mm
Temperature range (Device): -5 °C to 45 °C Mounting depth: 36 mm60669-2-1
Dimensions: (L x W x D): 94 mm x 94 mm x 72 mm LEDi
Mounting depth: 49 mm60669-2-1
LEDi studio white 6817/62-24-500 2CKA006800A2737 1
matt
studio white 6819/30-24-500 2CKA006800A2735 1 aluminium 6817/62-183-500 2CKA006800A2771 1
matt
silver
aluminium 6819/30-183-500 2CKA006800A2769 1 1) The detection range with a central approach is reduced.
silver 2) Recommendation: HaloX-O flush-mounted box from Kaiser (article no. 1290-40)
1) The detection range with a central approach is reduced. with corresponding cover (1290-47 or 1290-85 for exposed concrete) or IBTronic
2) In combination with a relay/contactor, an RC suppressor 6899 has to be used. H120-68 from Spelsberg
3) Recommendation: HaloX-O flush-mounted box from Kaiser (article no. 1290-40)
with corresponding cover (1290-47 or 1290-85 for exposed concrete) or IBTronic
H120-68 from Spelsberg
