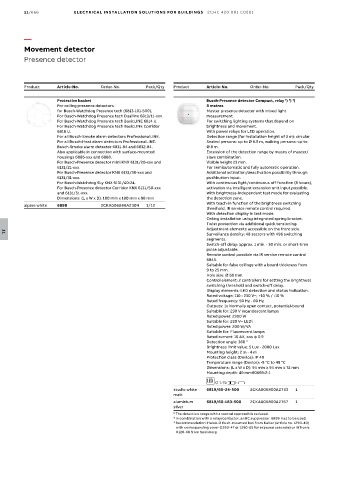

11/666 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Movement detector
Presence detector

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Protective basket Busch-Presence detector Compact, relay ) ) )
1
3
2
For ceiling presence detectors. 8 metres
for Busch-Watchdog Presence tech (6813-101-500), Master presence detector with mixed light
For Busch-Watchdog Presence tech Dualline 6813/11-xxx. measurement.
For Busch-Watchdog Presence tech BasicLINE 6814 U. For switching lighting systems that depend on
For Busch-Watchdog Presence tech BasicLINE Corridor brightness and movement.
6818 U. With power relays for LED operation.
For all Busch-Smoke alarm detectors ProfessionalLINE. Detection range (for installation height of 3 m): circular
For all Busch-Heat alarm detectors ProfessionalLINE. Seated persons: up to Ø 6.5 m, walking persons: up to
Busch-Smoke alarm detector 6831-84 and 6832-84. Ø 8 m.
Also applicable in connection with surface-mounted Extension of the detection range by means of master/
housings 6885-xxx and 6888. slave combination.
For Busch-Presence detector mini KNX 6131/20-xxx and Visible height 23 mm.
6131/21-xxx. For semiautomatic and fully automatic operation.
For Busch-Presence detector KNX 6131/30-xxx and Additional activation/deactivation possibility through
6131/31-xxx. pushbutton input.
For Busch-Watchdog Sky KNX 6131/40-24. With continuous light/continuous off function (8 hours),
For Busch-Presence detector Corridor KNX 6131/50-xxx activation via intelligent extension unit input possible.
and 6131/51-xxx. With brightness-independent test mode for evaluating
Dimensions: (L x W x D): 180 mm x 180 mm x 98 mm the detection zone.
With teach-in function of the brightness switching
alpine white 6898 2CKA006899A2304 1/12
threshold, IR service remote control required.
With detection display in test mode.
Ceiling installation using integrated spring bracket.
Twist protection via additional quick tensioning.
Adjustment elements accessible on the front side.
Surveillance density: 48 sectors with 496 switching
11
segments.
Switch-off delay: approx. 1 min. - 30 min. or short-time
pulse adjustable.
Remote control possible via IR service remote control
6843.
Suitable for false ceilings with a board thickness from
9 to 25 mm.
Hole size: Ø 68 mm.
Control element: 2 controllers for setting the brightness
switching threshold and switch-off delay.
Display elements: LED detection and status indication.
Rated voltage: 110 - 230 V~, +10 % / -10 %
Rated frequency: 50 Hz - 60 Hz
Outputs: 1x Normally open contact, potential-bound
Suitable for: 230 V incandescent lamps
Rated power: 2300 W
Suitable for: 230 V~ LEDi
Rated power: 200 W/VA
Suitable for: Fluorescent lamps
Rated current: 10 AX, cos φ 0.9
Detection angle: 360 °
Brightness limit value: 5 Lux - 2000 Lux
Mounting height: 2 m - 4 m
Protection class (Device): IP 40
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 94 mm x 94 mm x 72 mm
Mounting depth: 49 mm60669-2-1
LEDi
studio white 6819/60-24-500 2CKA006800A2733 1
matt
aluminium 6819/60-183-500 2CKA006800A2767 1
silver
1) The detection range with a central approach is reduced.
2) In combination with a relay/contactor, an RC suppressor 6899 has to be used.
3) Recommendation: HaloX-O flush-mounted box from Kaiser (article no. 1290-40)
with corresponding cover (1290-47 or 1290-85 for exposed concrete) or IBTronic
H120-68 from Spelsberg
