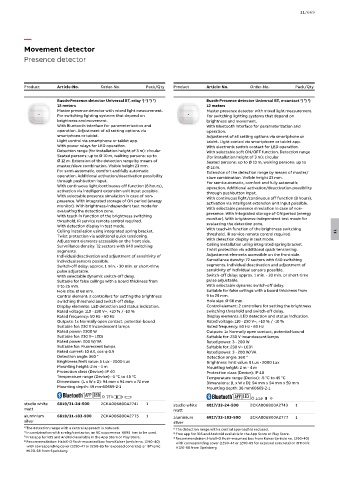

Page 1775 - Din prodcuts 2020

11/669

—
Movement detector
Presence detector

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

3
2
Busch-Presence detector Universal BT, relay ) ) ) ) Busch-Presence detector Universal BT, e-contact ) ) )
1
2
3
4
1
12 meters 12 meters
Master presence detector with mixed light measurement. Master presence detector with mixed light measurement.
For switching lighting systems that depend on For switching lighting systems that depend on
brightness and movement. brightness and movement.
With Bluetooth interface for parameterization and With Bluetooth interface for parameterization and
operation. Adjustment of all setting options via operation.
smartphone or tablet. Adjustment of all setting options via smartphone or
Light control via smartphone or tablet app. tablet. Light control via smartphone or tablet app.
With power relays for LED operation. With electronic switch contact for LED operation.
Detection range (for installation height of 3 m): circular With selectable soft ON/OFF function. Detection range
Seated persons: up to Ø 10 m, walking persons: up to (for installation height of 3 m): circular
Ø 12 m. Extension of the detection range by means of Seated persons: up to Ø 10 m, walking persons: up to
master/slave combination. Visible height 23 mm. Ø 12 m.
For semi-automatic, comfort and fully automatic Extension of the detection range by means of master/
operation. Additional activation/deactivation possibility slave combination. Visible height 23 mm.
through pushbutton input. For semi-automatic, comfort and fully automatic
With continuous light/continuous off function (8 hours), operation. Additional activation/deactivation possibility
activation via intelligent extension unit input possible. through pushbutton input.
With selectable presence simulation in case of non- With continuous light/continuous off function (8 hours),
presence. With integrated storage of ON period (energy activation via intelligent extension unit input possible.
monitor). With brightness-independent test mode for With selectable presence simulation in case of non-
evaluating the detection zone.
With teach-in function of the brightness switching presence. With integrated storage of ON period (energy
threshold, IR service remote control required. monitor). With brightness-independent test mode for
With detection display in test mode. evaluating the detection zone.
Ceiling installation using integrated spring bracket. With teach-in function of the brightness switching 11
Twist protection via additional quick tensioning. threshold, IR service remote control required.
Adjustment elements accessible on the front side. With detection display in test mode.
Surveillance density: 72 sectors with 640 switching Ceiling installation using integrated spring bracket.
segments. Twist protection via additional quick tensioning.
Individual deactivation and adjustment of sensitivity of Adjustment elements accessible on the front side.
individual sensors possible. Surveillance density: 72 sectors with 640 switching
Switch-off delay: approx. 1 min. - 30 min. or short-time segments. Individual deactivation and adjustment of
pulse adjustable. sensitivity of individual sensors possible.
With selectable dynamic switch-off delay. Switch-off delay: approx. 1 min. - 30 min. or short-time
Suitable for false ceilings with a board thickness from pulse adjustable.
9 to 25 mm. With selectable dynamic switch-off delay.
Hole size: Ø 68 mm. Suitable for false ceilings with a board thickness from
Control element: 2 controllers for setting the brightness 9 to 25 mm.
switching threshold and switch-off delay. Hole size: Ø 68 mm.
Display elements: LED detection and status indication. Control element: 2 controllers for setting the brightness
Rated voltage: 110 - 230 V~, +10 % / -10 % switching threshold and switch-off delay.
Rated frequency: 50 Hz - 60 Hz Display elements: LED detection and status indication.
Outputs: 1x Normally open contact, potential-bound Rated voltage: 110 - 230 V~, +10 % / -10 %
Suitable for: 230 V incandescent lamps Rated frequency: 50 Hz - 60 Hz
Rated power: 2300 W Outputs: 1x Normally open contact, potential-bound
Suitable for: 230 V~ LEDi Suitable for: 230 V incandescent lamps
Rated power: 200 W/VA Rated power: 3 - 200 W
Suitable for: Fluorescent lamps Suitable for: 230 V~ LEDi
Rated current: 10 AX, cos φ 0.9 Rated power: 3 - 200 W/VA
Detection angle: 360 ° Detection angle: 360 °
Brightness limit value: 5 Lux - 2000 Lux Brightness limit value: 5 Lux - 2000 Lux
Mounting height: 2 m - 4 m Mounting height: 2 m - 4 m
Protection class (Device): IP 40 Protection class (Device): IP 40
Temperature range (Device): -5 °C to 45 °C Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 94 mm x 94 mm x 72 mm Dimensions: (L x W x D): 94 mm x 94 mm x 59 mm
Mounting depth: 49 mm60669-2-1 Mounting depth: 36 mm60669-2-1
LEDi
LEDi
studio white 6819/31-24-500 2CKA006800A2741 1 studio white 6817/33-24-500 2CKA006800A2743 1
matt matt
aluminium 6819/31-183-500 2CKA006800A2775 1 aluminium 6817/33-183-500 2CKA006800A2777 1
silver silver
1) The detection range with a central approach is reduced.
1) The detection range with a central approach is reduced.
2) In combination with a relay/contactor, an RC suppressor 6899 has to be used.
2) Free app for iOS and Android available in the App Store or Play Store.
3) Free app for iOS and Android available in the App Store or Play Store.
3) Recommendation: HaloX-O flush-mounted box from Kaiser (article no. 1290-40)
4) Recommendation: HaloX-O flush-mounted box from Kaiser (article no. 1290-40)
with corresponding cover (1290-47 or 1290-85 for exposed concrete) or IBTronic
with corresponding cover (1290-47 or 1290-85 for exposed concrete) or IBTronic H120-68 from Spelsberg
H120-68 from Spelsberg
