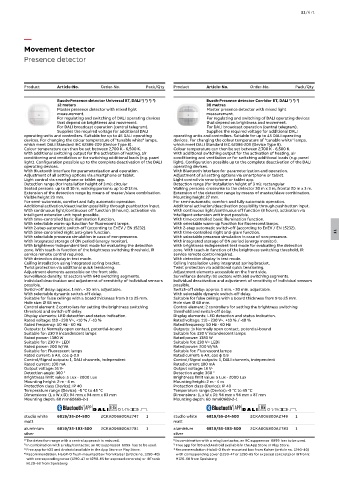

Page 1777 - Din prodcuts 2020

11/671

—
Movement detector
Presence detector

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
2
3
4
1
Busch-Presence detector Universal BT, DALI ) ) ) ) Busch-Presence detector Corridor BT, DALI ) ) )
3
2
12 meters 30 metres
Master presence detector with mixed light Master presence detector with mixed light
measurement. measurement.
For regulating and switching of DALI operating devices For regulating and switching of DALI operating devices
that depend on brightness and movement. that depend on brightness and movement.
For DALI broadcast operation (central telegram). For DALI broadcast operation (central telegram).
Supplies the required voltage for additional DALI Supplies the required voltage for additional DALI
operating units and controllers. Suitable for up to 45 DALI operating operating units and controllers. Suitable for up to 45 DALI operating
devices. For changing the colour temperature of "tunable white" lamps, devices. For changing the colour temperature of "tunable white" lamps,
which meet DALI Standard IEC 62386-209 (Device Type 8). which meet DALI Standard IEC 62386-209 (Device Type 8).
Colour temperature can then be set between 2,700 K - 6,500 K. Colour temperature can then be set between 2,700 K - 6,500 K.
With additional switching output for the activation of heating, air With additional switching output for the activation of heating, air
conditioning and ventilation or for switching additional loads (e.g. panel conditioning and ventilation or for switching additional loads (e.g. panel
light). Configuration possible up to the complete deactivation of the DALI light). Configuration possible up to the complete deactivation of the DALI
operating devices. operating devices.
With Bluetooth interface for parameterization and operation. With Bluetooth interface for parameterization and operation.
Adjustment of all setting options via smartphone or tablet. Adjustment of all setting options via smartphone or tablet.
Light control via smartphone or tablet app. Light control via smartphone or tablet app.
Detection range (for installation height of 3 m): circular Detection range (for installation height of 3 m): rectangular
Seated persons: up to Ø 10 m, walking persons: up to Ø 12 m. Walking persons: crosswise to the detector 30 m x 3 m, frontal 20 m x 3 m.
Extension of the detection range by means of master/slave combination. Extension of the detection range by means of master/slave combination.
Visible height 23 mm. Mounting height 27 mm.
For semi-automatic, comfort and fully automatic operation. For semi-automatic, comfort and fully automatic operation.
Additional activation/deactivation possibility through pushbutton input. Additional activation/deactivation possibility through pushbutton input.
With continuous light/continuous off function (8 hours), activation via With continuous light/continuous off function (8 hours), activation via
intelligent extension unit input possible. intelligent extension unit input possible.
With time-controlled basic illumination function. With time-controlled basic illumination function.
With selectable warm-up function for fluorescent lamps. With selectable warm-up function for fluorescent lamps.
With 2-step automatic switch-off (according to EnEV / EN 15232). With 2-step automatic switch-off (according to EnEV / EN 15232).
With time-controlled night anti-glare function. With time-controlled night anti-glare function. 11
With selectable presence simulation in case of non-presence. With selectable presence simulation in case of non-presence.
With integrated storage of ON period (energy monitor). With integrated storage of ON period (energy monitor).
With brightness-independent test mode for evaluating the detection With brightness-independent test mode for evaluating the detection
zone. With teach-in function of the brightness switching threshold, IR zone. With teach-in function of the brightness switching threshold, IR
service remote control required. service remote control required.
With detection display in test mode. With detection display in test mode.
Ceiling installation using integrated spring bracket. Ceiling installation using integrated spring bracket.
Twist protection via additional quick tensioning. Twist protection via additional quick tensioning.
Adjustment elements accessible on the front side. Adjustment elements accessible on the front side.
Surveillance density: 72 sectors with 640 switching segments. Surveillance density: 92 sectors with 368 switching segments.
Individual deactivation and adjustment of sensitivity of individual sensors Individual deactivation and adjustment of sensitivity of individual sensors
possible. possible.
Switch-off delay: approx. 1 min. - 30 min. adjustable. Switch-off delay: approx. 1 min. - 30 min. adjustable.
With selectable dynamic switch-off delay. With selectable dynamic switch-off delay.
Suitable for false ceilings with a board thickness from 9 to 25 mm. Suitable for false ceilings with a board thickness from 9 to 25 mm.
Hole size: Ø 68 mm. Hole size: Ø 68 mm.
Control element: 2 controllers for setting the brightness switching Control element: 2 controllers for setting the brightness switching
threshold and switch-off delay. threshold and switch-off delay.
Display elements: LED detection and status indication. Display elements: LED detection and status indication.
Rated voltage: 110 - 230 V~, +10 % / -10 % Rated voltage: 110 - 230 V~, +10 % / -10 %
Rated frequency: 50 Hz - 60 Hz Rated frequency: 50 Hz - 60 Hz
Outputs: 1x Normally open contact, potential-bound Outputs: 1x Normally open contact, potential-bound
Suitable for: 230 V incandescent lamps Suitable for: 230 V incandescent lamps
Rated power: 1380 W Rated power: 1380 W
Suitable for: 230 V~ LEDi Suitable for: 230 V~ LEDi
Rated power: 200 W/VA Rated power: 200 W/VA
Suitable for: Fluorescent lamps Suitable for: Fluorescent lamps
Rated current: 6 AX, cos φ 0.9 Rated current: 6 AX, cos φ 0.9
Control/Signal outputs: 1, DALI channels, independent Control/Signal outputs: 1, DALI channels, independent
Rated current: 100 mA Rated current: 100 mA
Output voltage: 16 V- Output voltage: 16 V-
Detection angle: 360 ° Detection angle: 360 °
Brightness limit value: 5 Lux - 2000 Lux Brightness limit value: 5 Lux - 2000 Lux
Mounting height: 2 m - 4 m Mounting height: 2 m - 4 m
Protection class (Device): IP 40 Protection class (Device): IP 40
Temperature range (Device): -5 °C to 45 °C Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 94 mm x 94 mm x 83 mm Dimensions: (L x W x D): 94 mm x 94 mm x 87 mm
Mounting depth: 60 mm60669-2-1 Mounting depth: 60 mm60669-2-1
LEDi LEDi

studio white 6819/35-24-500 2CKA006800A2747 1 studio white 6819/55-24-500 2CKA006800A2749 1
matt matt
aluminium 6819/35-183-500 2CKA006800A2781 1 aluminium 6819/55-183-500 2CKA006800A2783 1
silver silver
1) The detection range with a central approach is reduced. 1) In combination with a relay/contactor, an RC suppressor 6899 has to be used.
2) In combination with a relay/contactor, an RC suppressor 6899 has to be used. 2) Free app for iOS and Android available in the App Store or Play Store.
3) Free app for iOS and Android available in the App Store or Play Store. 3) Recommendation: HaloX-O flush-mounted box from Kaiser (article no. 1290-40)
4) Recommendation: HaloX-O flush-mounted box from Kaiser (article no. 1290-40) with corresponding cover (1290-47 or 1290-85 for exposed concrete) or IBTronic
with corresponding cover (1290-47 or 1290-85 for exposed concrete) or IBTronic H120-68 from Spelsberg
H120-68 from Spelsberg
