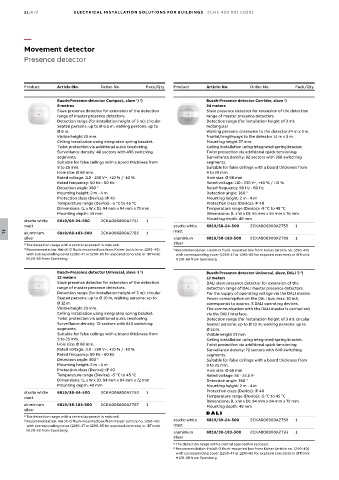

11/672 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Movement detector
Presence detector

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
Busch-Presence detector Compact, slave ) ) Busch-Presence detector Corridor, slave )
1
2
8 metres 24 meters
Slave presence detector for extension of the detection Slave presence detector for extension of the detection
range of master presence detectors. range of master presence detectors.
Detection range (for installation height of 3 m): circular Detection range (for installation height of 3 m):
Seated persons: up to Ø 6.5 m, walking persons: up to rectangular
Ø 8 m. Walking persons: crosswise to the detector 24 m x 3 m,
Visible height 23 mm. frontal/lengthways to the detector 14 m x 3 m.
Ceiling installation using integrated spring bracket. Mounting height 27 mm.
Twist protection via additional quick tensioning. Ceiling installation using integrated spring bracket.
Surveillance density: 48 sectors with 496 switching Twist protection via additional quick tensioning.
segments. Surveillance density: 92 sectors with 368 switching
Suitable for false ceilings with a board thickness from segments.
9 to 25 mm. Suitable for false ceilings with a board thickness from
Hole size: Ø 68 mm. 9 to 25 mm.
Rated voltage: 110 - 230 V~, +10 % / -10 % Hole size: Ø 68 mm.
Rated frequency: 50 Hz - 60 Hz Rated voltage: 110 - 230 V~, +10 % / -10 %
Detection angle: 360 ° Rated frequency: 50 Hz - 60 Hz
Mounting height: 2 m - 4 m Detection angle: 360 °
Protection class (Device): IP 40 Mounting height: 2 m - 4 m
Temperature range (Device): -5 °C to 45 °C Protection class (Device): IP 40
Dimensions: (L x W x D): 94 mm x 94 mm x 72 mm Temperature range (Device): -5 °C to 45 °C
Mounting depth: 49 mm Dimensions: (L x W x D): 94 mm x 94 mm x 76 mm
Mounting depth: 49 mm
studio white 6819/68-24-500 2CKA006800A2751 1
matt studio white 6819/58-24-500 2CKA006800A2755 1
aluminium 6819/68-183-500 2CKA006800A2785 1 matt
11
silver aluminium 6819/58-183-500 2CKA006800A2789 1
silver
1) The detection range with a central approach is reduced.
2) Recommendation: HaloX-O flush-mounted box from Kaiser (article no. 1290-40) 1) Recommendation: HaloX-O flush-mounted box from Kaiser (article no. 1290-40)
with corresponding cover (1290-47 or 1290-85 for exposed concrete) or IBTronic with corresponding cover (1290-47 or 1290-85 for exposed concrete) or IBTronic
H120-68 from Spelsberg H120-68 from Spelsberg
Busch-Presence detector Universal, slave ) ) Busch-Presence detector Universal, slave, DALI ) )
2
1
2
1
12 meters 12 meters
Slave presence detector for extension of the detection DALI slave presence detector for extension of the
range of master presence detectors. detection range of DALI master presence detectors.
Detection range (for installation height of 3 m): circular For the supply of operating voltage via the DALI master.
Seated persons: up to Ø 10 m, walking persons: up to Power consumption on the DALI bus: max. 10 mA,
Ø 12 m. corresponds to approx. 5 DALI operating devices.
Visible height 23 mm. The communication with the DALI master is carried out
Ceiling installation using integrated spring bracket. via the DALI interface.
Twist protection via additional quick tensioning. Detection range (for installation height of 3 m): circular
Surveillance density: 72 sectors with 640 switching Seated persons: up to Ø 10 m, walking persons: up to
segments. Ø 12 m.
Suitable for false ceilings with a board thickness from Visible height 23 mm.
9 to 25 mm. Ceiling installation using integrated spring bracket.
Hole size: Ø 68 mm. Twist protection via additional quick tensioning.
Rated voltage: 110 - 230 V~, +10 % / -10 % Surveillance density: 72 sectors with 640 switching
Rated frequency: 50 Hz - 60 Hz segments.
Detection angle: 360 ° Suitable for false ceilings with a board thickness from
Mounting height: 2 m - 4 m 9 to 25 mm.
Protection class (Device): IP 40 Hole size: Ø 68 mm.
Temperature range (Device): -5 °C to 45 °C Rated voltage: 95 - 22.5 V-
Dimensions: (L x W x D): 94 mm x 94 mm x 72 mm Detection angle: 360 °
Mounting depth: 49 mm Mounting height: 2 m - 4 m
studio white 6819/38-24-500 2CKA006800A2753 1 Protection class (Device): IP 40
matt Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 94 mm x 94 mm x 72 mm
aluminium 6819/38-183-500 2CKA006800A2787 1 Mounting depth: 49 mm
silver

1) The detection range with a central approach is reduced.
2) Recommendation: HaloX-O flush-mounted box from Kaiser (article no. 1290-40) studio white 6819/39-24-500 2CKA006800A2759 1
with corresponding cover (1290-47 or 1290-85 for exposed concrete) or IBTronic matt
H120-68 from Spelsberg aluminium 6819/39-183-500 2CKA006800A2793 1
silver
1) The detection range with a central approach is reduced.
2) Recommendation: HaloX-O flush-mounted box from Kaiser (article no. 1290-40)
with corresponding cover (1290-47 or 1290-85 for exposed concrete) or IBTronic
H120-68 from Spelsberg
