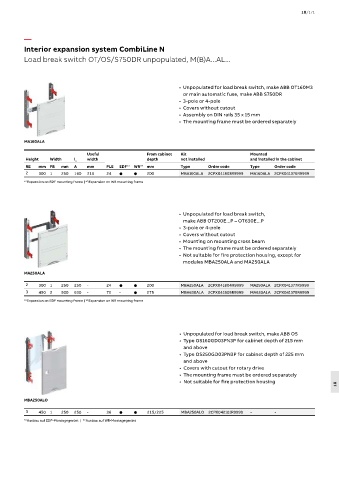

Interior expansion system CombiLine N
Load break switch OT/OS/S750DR unpopulated, M(B)A...AL...

• Unpopulated for load break switch, make ABB OT160M3
or main automatic fuse, make ABB S750DR
• 3-pole or 4-pole
• Covers without cutout
• Assembly on DIN rails 35 x 15 mm
• The mounting frame must be ordered separately

MA160ALA

Useful From cabinet Kit Mounted
Height Width I n width depth not installed and installed in the cabinet
RE mm FB mm A mm PLE EDF* 1 WR* 2 mm Type Order code Type Order code
2 300 1 250 160 216 24   200 MBA160ALA 2CPX041803R9999 MA160ALA 2CPX041376R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• Unpopulated for load break switch,
make ABB OT200E...P – OT630E...P
• 3-pole or 4-pole
• Covers without cutout
• Mounting on mounting cross beam
• The mounting frame must be ordered separately
• Not suitable for fire protection housing, except for
modules MBA250ALA and MA250ALA
MA250ALA

2 300 1 250 250 - 24   200 MBA250ALA 2CPX041804R9999 MA250ALA 2CPX041377R9999
3 450 2 500 630 - 72 -  275 MBA630ALA 2CPX041805R9999 MA630ALA 2CPX041378R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• Unpopulated for load break switch, make ABB OS
• Type OS160GD03PN3P for cabinet depth of 215 mm
and above
• Type OS250GD03PN3P for cabinet depth of 225 mm
and above
• Covers with cutout for rotary drive
• The mounting frame must be ordered separately
• Not suitable for fire protection housing
18

MBA250ALO

3 450 1 250 250 - 36   215/225 MBA250ALO 2CPX042101R9999 - -
* 1 Ausbau auf EDF-Montagegerüst | * 2 Ausbau auf WR-Montagegerüst
